Comparing apo and holo CDR loop clustering

Introduction

In this notebook, we set out to assess whether the CDR loops of TCRs stay in there canonical forms between apo and holo states or if they disrupt them.

[1]:

import itertools

import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns

[2]:

df = pd.read_csv('../data/processed/stcrdab_clusters.csv')
df

[2]:

	name	cluster	chain_type	cdr	sequence	cluster_type
0	7zt2_DE	12	alpha_chain	1	TSGFNG	pseudo
1	7zt3_DE	12	alpha_chain	1	TSGFNG	pseudo
2	7zt4_DE	12	alpha_chain	1	TSGFNG	pseudo
3	7zt5_DE	12	alpha_chain	1	TSGFNG	pseudo
4	7zt7_DE	12	alpha_chain	1	TSGFNG	pseudo
...	...	...	...	...	...	...
4807	6miv_CD	22	beta_chain	3	ASGDEGYTQY	canonical
4808	3rtq_CD	22	beta_chain	3	ASGDEGYTQY	canonical
4809	3dxa_NO	noise	beta_chain	3	ASRYRDDSYNEQF	NaN
4810	1d9k_AB	noise	beta_chain	3	ASGGQGRAEQF	NaN
4811	4gg6_GH	noise	beta_chain	3	ASSVAVSAGTYEQY	NaN

4812 rows × 6 columns

Compare apo and holo forms of loops

[3]:

apo_holo_summary_df = pd.read_csv('../data/processed/apo-holo-tcr-pmhc-class-I/apo_holo_summary.csv')
apo_holo_summary_df

[3]:

	file_name	pdb_id	structure_type	state	alpha_chain	beta_chain	antigen_chain	mhc_chain1	mhc_chain2	cdr_sequences_collated	peptide_sequence	mhc_slug
0	1ao7_D-E-C-A-B_tcr_pmhc.pdb	1ao7	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVTTDSWGKLQ-MNHEY-SVGAGI-ASRPGLA...	LLFGYPVYV	hla_a_02_01
1	1b0g_C-A-B_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	C	A	B	NaN	ALWGFFPVL	hla_a_02_01
2	1b0g_F-D-E_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	F	D	E	NaN	ALWGFFPVL	hla_a_02_01
3	1bd2_D-E-C-A-B_tcr_pmhc.pdb	1bd2	tcr_pmhc	holo	D	E	C	A	B	NSMFDY-ISSIKDK-AAMEGAQKLV-MNHEY-SVGAGI-ASSYPGG...	LLFGYPVYV	hla_a_02_01
4	1bii_P-A-B_pmhc.pdb	1bii	pmhc	apo	NaN	NaN	P	A	B	NaN	RGPGRAFVTI	h2_dd
...	...	...	...	...	...	...	...	...	...	...	...	...
386	7rtd_C-A-B_pmhc.pdb	7rtd	pmhc	apo	NaN	NaN	C	A	B	NaN	YLQPRTFLL	hla_a_02_01
387	7rtr_D-E-C-A-B_tcr_pmhc.pdb	7rtr	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01
388	8gvb_A-B-P-H-L_tcr_pmhc.pdb	8gvb	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RYPLTFGW	hla_a_24_02
389	8gvg_A-B-P-H-L_tcr_pmhc.pdb	8gvg	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RFPLTFGW	hla_a_24_02
390	8gvi_A-B-P-H-L_tcr_pmhc.pdb	8gvi	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVVFTGGGNKLT-SEHNR-FQNEAQ-ASSL...	RYPLTFGW	hla_a_24_02

391 rows × 12 columns

[4]:

df[['pdb_id', 'chains']] = df['name'].str.split('_').apply(pd.Series)
df[['alpha_chain', 'beta_chain']] = df['chains'].apply(list).apply(pd.Series)

[5]:

apo_holo_clusters = df.merge(apo_holo_summary_df,
                             how='inner',
                             on=['pdb_id', 'alpha_chain', 'beta_chain'])
apo_holo_clusters

[5]:

	name	cluster	chain_type	cdr	sequence	cluster_type	pdb_id	chains	alpha_chain	beta_chain	file_name	structure_type	state	antigen_chain	mhc_chain1	mhc_chain2	cdr_sequences_collated	peptide_sequence	mhc_slug
0	2ak4_DE	4	alpha_chain	1	TRDTTYY	canonical	2ak4	DE	D	E	2ak4_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	TRDTTYY-RNSFDEQN-ALSGFYNTDKLI-MNHNS-SASEGT-ASP...	LPEPLPQGQLTAY	hla_b_35_08
1	2ak4_DE	6	beta_chain	1	MNHNS	canonical	2ak4	DE	D	E	2ak4_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	TRDTTYY-RNSFDEQN-ALSGFYNTDKLI-MNHNS-SASEGT-ASP...	LPEPLPQGQLTAY	hla_b_35_08
2	2ak4_DE	6	alpha_chain	2	RNSFDEQN	pseudo	2ak4	DE	D	E	2ak4_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	TRDTTYY-RNSFDEQN-ALSGFYNTDKLI-MNHNS-SASEGT-ASP...	LPEPLPQGQLTAY	hla_b_35_08
3	2ak4_DE	noise	beta_chain	2	SASEGT	NaN	2ak4	DE	D	E	2ak4_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	TRDTTYY-RNSFDEQN-ALSGFYNTDKLI-MNHNS-SASEGT-ASP...	LPEPLPQGQLTAY	hla_b_35_08
4	2ak4_DE	12	alpha_chain	3	ALSGFYNTDKLI	pseudo	2ak4	DE	D	E	2ak4_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	TRDTTYY-RNSFDEQN-ALSGFYNTDKLI-MNHNS-SASEGT-ASP...	LPEPLPQGQLTAY	hla_b_35_08
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
1105	4jff_DE	0	beta_chain	1	GTSNPN	pseudo	4jff	DE	D	E	4jff_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	FLGSQS-TYREGD-AVNDGGRLT-GTSNPN-WGPFG-AWSETGLGM...	ELAGIGILTV	hla_a_02_01
1106	4jff_DE	17	alpha_chain	2	TYREGD	canonical	4jff	DE	D	E	4jff_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	FLGSQS-TYREGD-AVNDGGRLT-GTSNPN-WGPFG-AWSETGLGM...	ELAGIGILTV	hla_a_02_01
1107	4jff_DE	noise	beta_chain	2	WGPFG	NaN	4jff	DE	D	E	4jff_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	FLGSQS-TYREGD-AVNDGGRLT-GTSNPN-WGPFG-AWSETGLGM...	ELAGIGILTV	hla_a_02_01
1108	4jff_DE	26	alpha_chain	3	AVNDGGRLT	canonical	4jff	DE	D	E	4jff_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	FLGSQS-TYREGD-AVNDGGRLT-GTSNPN-WGPFG-AWSETGLGM...	ELAGIGILTV	hla_a_02_01
1109	4jff_DE	noise	beta_chain	3	AWSETGLGMGGWQ	NaN	4jff	DE	D	E	4jff_D-E-C-A-B_tcr_pmhc.pdb	tcr_pmhc	holo	C	A	B	FLGSQS-TYREGD-AVNDGGRLT-GTSNPN-WGPFG-AWSETGLGM...	ELAGIGILTV	hla_a_02_01

1110 rows × 19 columns

[6]:

def collate_clusters(group):
    apo_clusters = sorted(group.query("state == 'apo'")['cluster'].tolist())
    holo_clusters = sorted(group.query("state == 'holo'")['cluster'].tolist())

    return pd.Series({'apo_clusters': apo_clusters, 'holo_clusters': holo_clusters})

apo_holo_clusters_agg = apo_holo_clusters.groupby(['cdr_sequences_collated',
                                                   'chain_type',
                                                   'cdr']).apply(collate_clusters).reset_index()
apo_holo_clusters_agg

[6]:

	cdr_sequences_collated	chain_type	cdr	apo_clusters	holo_clusters
0	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	[13]	[noise]
1	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	2	[noise]	[noise]
2	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	3	[noise]	[noise]
3	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	beta_chain	1	[4]	[4]
4	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	beta_chain	2	[2]	[2]
...	...	...	...	...	...
511	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	alpha_chain	2	[noise]	[noise]
512	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	alpha_chain	3	[noise]	[2]
513	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	1	[4]	[4]
514	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	2	[2]	[2]
515	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	[noise]	[noise]

516 rows × 5 columns

[7]:

cluster_types = (df[['chain_type', 'cdr', 'cluster', 'cluster_type']].drop_duplicates()
                                                                     .set_index(['chain_type', 'cdr', 'cluster'])
                                                                     ['cluster_type'])

[8]:

def classify_movement(chain_type: str,
                      cdr: str,
                      apo_clusters: list[str],
                      holo_clusters: list[str],
                      cluster_types: pd.Series) -> pd.Series:
    types = {
        'Noise': 0,
        'Noise to Canonical Cluster': 0,
        'Noise to Pseudo Cluster': 0,
        'Canonical Cluster to Noise': 0,
        'Pseudo Cluster to Noise': 0,
        'Canonical Cluster Shift': 0,
        'Pseudo Cluster Shift': 0,
        'Canonical to Pseudo': 0,
        'Pseudo to Canonical': 0,
        'Canonical Cluster Same': 0,
        'Pseudo Cluster Same': 0,
    }

    for apo_clust, holo_clust in itertools.product(apo_clusters, holo_clusters):
        if apo_clust == 'noise' and holo_clust == 'noise':
            types['Noise'] += 1

        elif apo_clust == 'noise' and holo_clust != 'noise':
            if cluster_types.loc[chain_type, cdr, holo_clust] == 'canonical':
                 types['Noise to Canonical Cluster'] += 1

            else:
                types['Noise to Pseudo Cluster'] += 1

        elif apo_clust != 'noise' and holo_clust == 'noise':
            if cluster_types.loc[chain_type, cdr, apo_clust] == 'canonical':
                 types['Canonical Cluster to Noise'] += 1

            else:
                types['Pseudo Cluster to Noise'] += 1

        elif apo_clust != holo_clust:
            if (cluster_types.loc[chain_type, cdr, apo_clust]
                == cluster_types.loc[chain_type, cdr, holo_clust]
                == 'canonical'):
                 types['Canonical Cluster Shift'] += 1

            elif (cluster_types.loc[chain_type, cdr, apo_clust] == 'canonical'
                  and cluster_types.loc[chain_type, cdr, holo_clust] == 'pseudo'):
                types['Canonical to Pseudo'] += 1

            else:
                types['Pseudo to Canonical'] += 1

        elif apo_clust == holo_clust:
            if cluster_types.loc[chain_type, cdr, apo_clust] == 'canonical':
                types['Canonical Cluster Same'] += 1

            else:
                types['Pseudo Cluster Same'] += 1

    return pd.Series(types)


apo_holo_clusters_agg = apo_holo_clusters_agg.join(apo_holo_clusters_agg.apply(
    lambda row: classify_movement(row.chain_type, row.cdr, row.apo_clusters, row.holo_clusters, cluster_types), axis=1
))

# Wide to long
apo_holo_clusters_agg = apo_holo_clusters_agg.melt(id_vars=['cdr_sequences_collated', 'chain_type', 'cdr'],
                                                 value_vars=['Noise',
                                                             'Noise to Canonical Cluster',
                                                             'Noise to Pseudo Cluster',
                                                             'Canonical Cluster to Noise',
                                                             'Pseudo Cluster to Noise',
                                                             'Canonical Cluster Shift',
                                                             'Pseudo Cluster Shift',
                                                             'Canonical to Pseudo',
                                                             'Pseudo to Canonical',
                                                             'Canonical Cluster Same',
                                                             'Pseudo Cluster Same'],
                                                 var_name='types', value_name='count')

# Normalize for differeing group sizes
apo_holo_clusters_agg = apo_holo_clusters_agg.groupby(
    ['cdr_sequences_collated', 'chain_type', 'cdr', 'types'],
)['count'].median().reset_index()
apo_holo_clusters_agg

[8]:

	cdr_sequences_collated	chain_type	cdr	types	count
0	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster Same	0.0
1	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster Shift	0.0
2	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster to Noise	1.0
3	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical to Pseudo	0.0
4	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Noise	0.0
...	...	...	...	...	...
5671	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Noise to Pseudo Cluster	0.0
5672	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster Same	0.0
5673	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster Shift	0.0
5674	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster to Noise	0.0
5675	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo to Canonical	0.0

5676 rows × 5 columns

[9]:

apo_holo_clusters_agg

[9]:

	cdr_sequences_collated	chain_type	cdr	types	count
0	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster Same	0.0
1	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster Shift	0.0
2	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical Cluster to Noise	1.0
3	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Canonical to Pseudo	0.0
4	ATGYPS-ATKADDK-ALSDPVNDMR-SGHAT-FQNNGV-ASSLRGR...	alpha_chain	1	Noise	0.0
...	...	...	...	...	...
5671	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Noise to Pseudo Cluster	0.0
5672	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster Same	0.0
5673	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster Shift	0.0
5674	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo Cluster to Noise	0.0
5675	YSGSPE-HISR-ALSGFNNAGNMLT-SGHAT-FQNNGV-ASSLGGA...	beta_chain	3	Pseudo to Canonical	0.0

5676 rows × 5 columns

[10]:

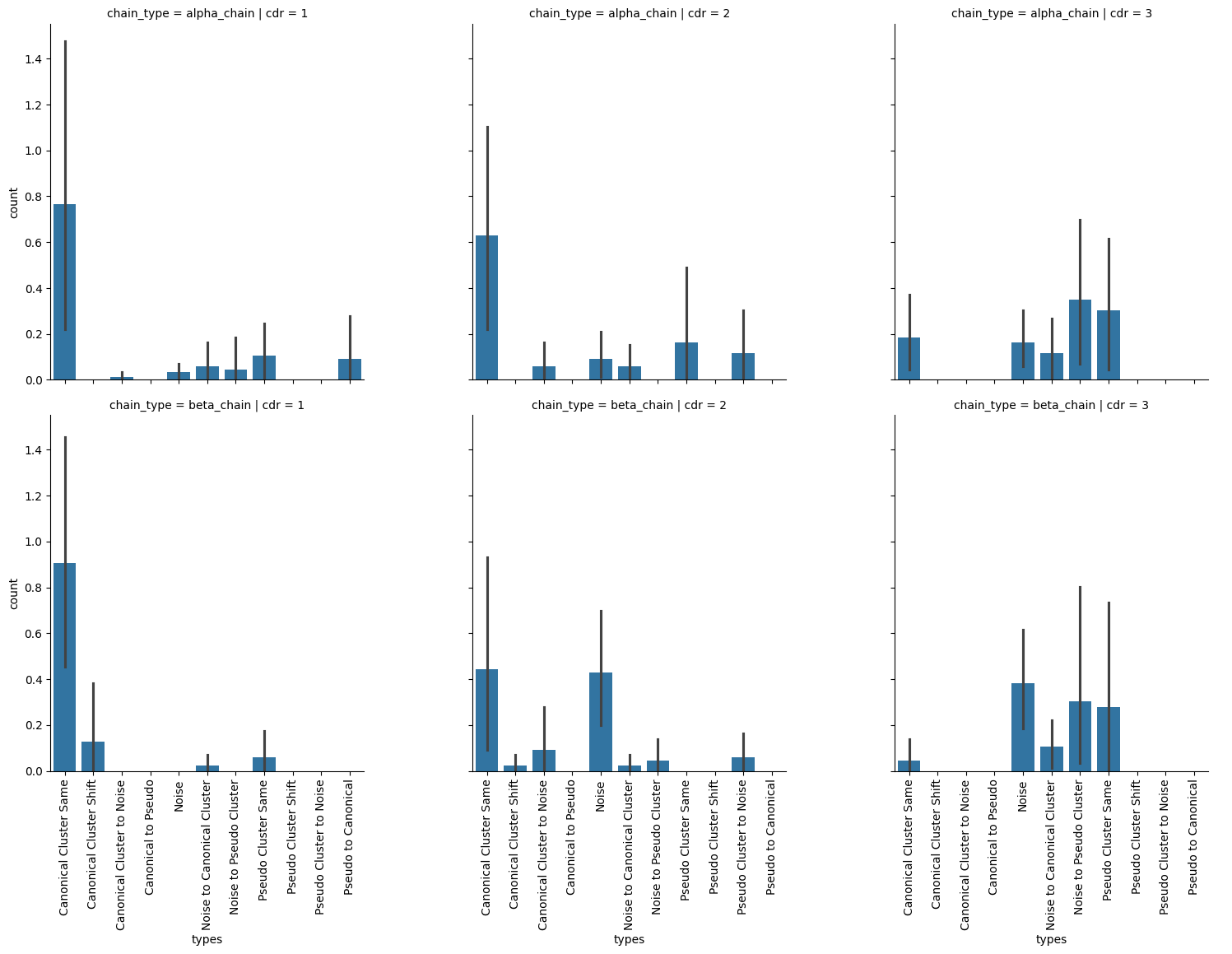

g = sns.catplot(apo_holo_clusters_agg.sort_values(['chain_type', 'cdr', 'types']),
                row='chain_type', col='cdr',
                x='types', y='count',
                kind='bar')

for ax in g.axes.flat:
    labels = ax.get_xticklabels()
    plt.setp(labels, rotation=90)

../_images/source_Comparing_apo_and_holo_CDR_loop_clustering_12_0.png

[11]:

cluster_shift_counts = apo_holo_clusters_agg.groupby(['chain_type', 'cdr', 'types'])['count'].sum().astype(int)
cluster_shift_counts[cluster_shift_counts > 0]

[11]:

chain_type   cdr  types
alpha_chain  1    Canonical Cluster Same        66
                  Canonical Cluster to Noise     1
                  Noise                          3
                  Noise to Canonical Cluster     5
                  Noise to Pseudo Cluster        4
                  Pseudo Cluster Same            9
                  Pseudo to Canonical            8
             2    Canonical Cluster Same        54
                  Canonical Cluster to Noise     5
                  Noise                          8
                  Noise to Canonical Cluster     5
                  Pseudo Cluster Same           14
                  Pseudo Cluster to Noise       10
             3    Canonical Cluster Same        16
                  Noise                         14
                  Noise to Canonical Cluster    10
                  Noise to Pseudo Cluster       30
                  Pseudo Cluster Same           26
beta_chain   1    Canonical Cluster Same        78
                  Canonical Cluster Shift       11
                  Noise to Canonical Cluster     2
                  Pseudo Cluster Same            5
             2    Canonical Cluster Same        38
                  Canonical Cluster Shift        2
                  Canonical Cluster to Noise     8
                  Noise                         37
                  Noise to Canonical Cluster     2
                  Noise to Pseudo Cluster        4
                  Pseudo Cluster to Noise        5
             3    Canonical Cluster Same         4
                  Noise                         33
                  Noise to Canonical Cluster     9
                  Noise to Pseudo Cluster       26
                  Pseudo Cluster Same           24
Name: count, dtype: int64

[ ]:

export_cluster_shift_counts = cluster_shift_counts.to_frame().reset_index()

export_cluster_shift_counts = export_cluster_shift_counts.rename({'types': 'Movement Type'}, axis='columns')

export_cluster_shift_counts['CDR Type'] = export_cluster_shift_counts.apply(
    lambda row: f"CDR{row.cdr}\\text{row.chain_type.split('_')[0]}{{}}",
    axis='columns',
)

export_cluster_shift_counts = export_cluster_shift_counts.pivot(index='Movement Type',
                                                                columns='CDR Type',
                                                                values='count')
export_cluster_shift_counts = export_cluster_shift_counts.sort_values('Movement Type')

export_cluster_shift_counts = export_cluster_shift_counts.replace(0, '-')
export_cluster_shift_counts = export_cluster_shift_counts.sort_index()
export_cluster_shift_counts.columns.name = None
export_cluster_shift_counts = export_cluster_shift_counts.reset_index()

export_cluster_shift_counts

	Movement Type	CDR1\textalpha{}	CDR1\textbeta{}	CDR2\textalpha{}	CDR2\textbeta{}	CDR3\textalpha{}	CDR3\textbeta{}
0	Canonical Cluster Same	66	78	54	38	16	4
1	Canonical Cluster Shift	-	11	-	2	-	-
2	Canonical Cluster to Noise	1	-	5	8	-	-
3	Canonical to Pseudo	-	-	-	-	-	-
4	Noise	3	-	8	37	14	33
5	Noise to Canonical Cluster	5	2	5	2	10	9
6	Noise to Pseudo Cluster	4	-	-	4	30	26
7	Pseudo Cluster Same	9	5	14	-	26	24
8	Pseudo Cluster Shift	-	-	-	-	-	-
9	Pseudo Cluster to Noise	-	-	10	5	-	-
10	Pseudo to Canonical	8	-	-	-	-	-

Conclusion

The analysis here shows that for the most part, the CDR-1s and CDR-2s stay in their canonical forms between apo and holo states where as the CDR-3 loops have a variety of modes. As expected, it is more difficult to cluster the CDR-3 loops as they are more structurally diverse.
