Length dependency of conformational change

Introduction

In this notebook, we set out to determine if there was a correlation between conformational change and the length of CDR loops or peptides. We looked at both the correlation of bulk movements when loops where aligned on the framework regions and also the deformation effects when loops are aligned to one another. All peptide conformations are measure from alignment on the antigen binding groove floor.

[1]:

import os

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
import scipy
import seaborn as sns

Loading Meta data

[2]:

DATA_DIR = '../data/processed/apo-holo-tcr-pmhc-class-I-comparisons'

[3]:

apo_holo_summary_df = pd.read_csv('../data/processed/apo-holo-tcr-pmhc-class-I/apo_holo_summary.csv')

apo_holo_summary_df['id'] = apo_holo_summary_df['file_name'].str.replace('.pdb$', '', regex=True)

[4]:

cdr_types = ['CDR-A1', 'CDR-A2', 'CDR-A3','CDR-B1', 'CDR-B2', 'CDR-B3']
apo_holo_summary_df[cdr_types] = apo_holo_summary_df['cdr_sequences_collated'].str.split('-').apply(pd.Series)

[5]:

apo_holo_summary_df

[5]:

	file_name	pdb_id	structure_type	state	alpha_chain	beta_chain	antigen_chain	mhc_chain1	mhc_chain2	cdr_sequences_collated	peptide_sequence	mhc_slug	id	CDR-A1	CDR-A2	CDR-A3	CDR-B1	CDR-B2	CDR-B3
0	1ao7_D-E-C-A-B_tcr_pmhc.pdb	1ao7	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVTTDSWGKLQ-MNHEY-SVGAGI-ASRPGLA...	LLFGYPVYV	hla_a_02_01	1ao7_D-E-C-A-B_tcr_pmhc	DRGSQS	IYSNGD	AVTTDSWGKLQ	MNHEY	SVGAGI	ASRPGLAGGRPEQY
1	1b0g_C-A-B_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	C	A	B	NaN	ALWGFFPVL	hla_a_02_01	1b0g_C-A-B_pmhc	NaN	NaN	NaN	NaN	NaN	NaN
2	1b0g_F-D-E_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	F	D	E	NaN	ALWGFFPVL	hla_a_02_01	1b0g_F-D-E_pmhc	NaN	NaN	NaN	NaN	NaN	NaN
3	1bd2_D-E-C-A-B_tcr_pmhc.pdb	1bd2	tcr_pmhc	holo	D	E	C	A	B	NSMFDY-ISSIKDK-AAMEGAQKLV-MNHEY-SVGAGI-ASSYPGG...	LLFGYPVYV	hla_a_02_01	1bd2_D-E-C-A-B_tcr_pmhc	NSMFDY	ISSIKDK	AAMEGAQKLV	MNHEY	SVGAGI	ASSYPGGGFYEQY
4	1bii_P-A-B_pmhc.pdb	1bii	pmhc	apo	NaN	NaN	P	A	B	NaN	RGPGRAFVTI	h2_dd	1bii_P-A-B_pmhc	NaN	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
386	7rtd_C-A-B_pmhc.pdb	7rtd	pmhc	apo	NaN	NaN	C	A	B	NaN	YLQPRTFLL	hla_a_02_01	7rtd_C-A-B_pmhc	NaN	NaN	NaN	NaN	NaN	NaN
387	7rtr_D-E-C-A-B_tcr_pmhc.pdb	7rtr	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS	IYSNGD	AVNRDDKII	SEHNR	FQNEAQ	ASSPDIEQY
388	8gvb_A-B-P-H-L_tcr_pmhc.pdb	8gvb	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RYPLTFGW	hla_a_24_02	8gvb_A-B-P-H-L_tcr_pmhc	YGATPY	YFSGDTLV	AVGFTGGGNKLT	SEHNR	FQNEAQ	ASSDRDRVPETQY
389	8gvg_A-B-P-H-L_tcr_pmhc.pdb	8gvg	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RFPLTFGW	hla_a_24_02	8gvg_A-B-P-H-L_tcr_pmhc	YGATPY	YFSGDTLV	AVGFTGGGNKLT	SEHNR	FQNEAQ	ASSDRDRVPETQY
390	8gvi_A-B-P-H-L_tcr_pmhc.pdb	8gvi	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVVFTGGGNKLT-SEHNR-FQNEAQ-ASSL...	RYPLTFGW	hla_a_24_02	8gvi_A-B-P-H-L_tcr_pmhc	YGATPY	YFSGDTLV	AVVFTGGGNKLT	SEHNR	FQNEAQ	ASSLRDRVPETQY

391 rows × 19 columns

TCR Analysis

Load Data

[6]:

results_tcr_fw_align = pd.read_csv(os.path.join(DATA_DIR, 'rmsd_cdr_fw_align_results.csv'))
results_tcr_fw_align['alignment'] = 'framework'

[7]:

results_tcr_loop_align = pd.read_csv(os.path.join(DATA_DIR, 'rmsd_cdr_loop_align_results.csv'))
results_tcr_loop_align['alignment'] = 'loop'

[8]:

results_tcr = pd.concat([results_tcr_fw_align, results_tcr_loop_align])
results_tcr

[8]:

	complex_id	structure_x_name	structure_y_name	chain_type	cdr	rmsd	alignment
0	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	1.932806	framework
1	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	2	1.308598	framework
2	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	3	1.244062	framework
3	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	beta_chain	1	0.809066	framework
4	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	beta_chain	2	0.688597	framework
...	...	...	...	...	...	...	...
809	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	alpha_chain	2	0.206414	loop
810	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	alpha_chain	3	0.459090	loop
811	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	1	0.255668	loop
812	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	2	0.175123	loop
813	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	0.223801	loop

1628 rows × 7 columns

Merge with metadata

[9]:

apo_holo_summary_cdrs_df = apo_holo_summary_df.melt(
    id_vars=[col for col in apo_holo_summary_df.columns if col not in cdr_types],
    var_name='cdr_type',
    value_name='cdr_sequence',
    value_vars=cdr_types,
)

[10]:

apo_holo_summary_cdrs_df[['chain_type', 'cdr']] = apo_holo_summary_cdrs_df['cdr_type'].map(
    lambda cdr_type: ('alpha_chain' if cdr_type[-2] == 'A' else 'beta_chain', int(cdr_type[-1]))
).apply(pd.Series)

[11]:

apo_holo_summary_cdrs_df['cdr_length'] = apo_holo_summary_cdrs_df['cdr_sequence'].str.len()

[12]:

apo_holo_summary_cdrs_df

[12]:

	file_name	pdb_id	structure_type	state	alpha_chain	beta_chain	antigen_chain	mhc_chain1	mhc_chain2	cdr_sequences_collated	peptide_sequence	mhc_slug	id	cdr_type	cdr_sequence	chain_type	cdr	cdr_length
0	1ao7_D-E-C-A-B_tcr_pmhc.pdb	1ao7	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVTTDSWGKLQ-MNHEY-SVGAGI-ASRPGLA...	LLFGYPVYV	hla_a_02_01	1ao7_D-E-C-A-B_tcr_pmhc	CDR-A1	DRGSQS	alpha_chain	1	6.0
1	1b0g_C-A-B_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	C	A	B	NaN	ALWGFFPVL	hla_a_02_01	1b0g_C-A-B_pmhc	CDR-A1	NaN	alpha_chain	1	NaN
2	1b0g_F-D-E_pmhc.pdb	1b0g	pmhc	apo	NaN	NaN	F	D	E	NaN	ALWGFFPVL	hla_a_02_01	1b0g_F-D-E_pmhc	CDR-A1	NaN	alpha_chain	1	NaN
3	1bd2_D-E-C-A-B_tcr_pmhc.pdb	1bd2	tcr_pmhc	holo	D	E	C	A	B	NSMFDY-ISSIKDK-AAMEGAQKLV-MNHEY-SVGAGI-ASSYPGG...	LLFGYPVYV	hla_a_02_01	1bd2_D-E-C-A-B_tcr_pmhc	CDR-A1	NSMFDY	alpha_chain	1	6.0
4	1bii_P-A-B_pmhc.pdb	1bii	pmhc	apo	NaN	NaN	P	A	B	NaN	RGPGRAFVTI	h2_dd	1bii_P-A-B_pmhc	CDR-A1	NaN	alpha_chain	1	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2341	7rtd_C-A-B_pmhc.pdb	7rtd	pmhc	apo	NaN	NaN	C	A	B	NaN	YLQPRTFLL	hla_a_02_01	7rtd_C-A-B_pmhc	CDR-B3	NaN	beta_chain	3	NaN
2342	7rtr_D-E-C-A-B_tcr_pmhc.pdb	7rtr	tcr_pmhc	holo	D	E	C	A	B	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	7rtr_D-E-C-A-B_tcr_pmhc	CDR-B3	ASSPDIEQY	beta_chain	3	9.0
2343	8gvb_A-B-P-H-L_tcr_pmhc.pdb	8gvb	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RYPLTFGW	hla_a_24_02	8gvb_A-B-P-H-L_tcr_pmhc	CDR-B3	ASSDRDRVPETQY	beta_chain	3	13.0
2344	8gvg_A-B-P-H-L_tcr_pmhc.pdb	8gvg	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVGFTGGGNKLT-SEHNR-FQNEAQ-ASSD...	RFPLTFGW	hla_a_24_02	8gvg_A-B-P-H-L_tcr_pmhc	CDR-B3	ASSDRDRVPETQY	beta_chain	3	13.0
2345	8gvi_A-B-P-H-L_tcr_pmhc.pdb	8gvi	tcr_pmhc	holo	A	B	P	H	L	YGATPY-YFSGDTLV-AVVFTGGGNKLT-SEHNR-FQNEAQ-ASSL...	RYPLTFGW	hla_a_24_02	8gvi_A-B-P-H-L_tcr_pmhc	CDR-B3	ASSLRDRVPETQY	beta_chain	3	13.0

2346 rows × 18 columns

[13]:

results_tcr = results_tcr.merge(
    apo_holo_summary_cdrs_df[['file_name', 'pdb_id', 'structure_type', 'state']],
    how='left',
    left_on='structure_x_name',
    right_on='file_name',
).merge(
    apo_holo_summary_cdrs_df[['file_name', 'pdb_id', 'structure_type', 'state']],
    how='left',
    left_on='structure_y_name',
    right_on='file_name',
).merge(
    apo_holo_summary_cdrs_df[['id',
                              'cdr_sequences_collated',
                              'peptide_sequence',
                              'mhc_slug',
                              'cdr_sequence',
                              'cdr_length',
                              'cdr_type',
                              'chain_type',
                              'cdr']],
    how='left',
    left_on=['complex_id', 'chain_type', 'cdr'],
    right_on=['id', 'chain_type', 'cdr'],
)

Normalise data

[14]:

results_tcr['comparison'] = results_tcr['state_x'] + '-' + results_tcr['state_y']
results_tcr['comparison'] = results_tcr['comparison'].map(lambda entry: 'apo-holo' if entry == 'holo-apo' else entry)
results_tcr = results_tcr.query("comparison == 'apo-holo'").reset_index(drop=True)

[15]:

results_tcr['structure_comparison'] = results_tcr.apply(
    lambda row: '-'.join(sorted([row.structure_x_name, row.structure_y_name])),
    axis='columns',
)
results_tcr = results_tcr.drop_duplicates(['structure_comparison', 'chain_type', 'cdr', 'alignment'])

[16]:

results_tcr = results_tcr.groupby(['cdr_sequences_collated',
                                   'alignment',
                                   'comparison',
                                   'cdr_length',
                                   'cdr_sequence',
                                   'cdr_type',
                                   'chain_type',
                                   'cdr'])['rmsd'].mean().reset_index()

Visualise Results

Alignment on Framework region

[17]:

data = results_tcr.query("alignment == 'framework'")

r, p_val = scipy.stats.pearsonr(data['cdr_length'], data['rmsd'])

sns.lmplot(data.sort_values('cdr_type'), x='cdr_length', y='rmsd', scatter=False)
sns.scatterplot(data.sort_values('cdr_type'), x='cdr_length', y='rmsd', hue='cdr_type')

plt.text(4, 8, f'$r^2$ = {r**2: .2f}, p-value = {p_val: .2e}')

plt.show()

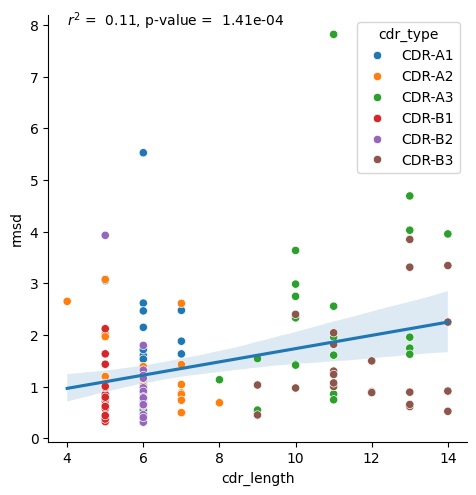

../_images/source_Length_dependency_of_conformational_change_25_0.png

Alignment on loops

[18]:

data = results_tcr.query("alignment == 'loop'")

r, p_val = scipy.stats.pearsonr(data['cdr_length'], data['rmsd'])

sns.lmplot(data.sort_values('cdr_type'), x='cdr_length', y='rmsd', scatter=False)
sns.scatterplot(data.sort_values('cdr_type'), x='cdr_length', y='rmsd', hue='cdr_type')

plt.text(7, 2.5, f'$r^2$ = {r**2: .2f}, p-value = {p_val: .2e}')

plt.show()

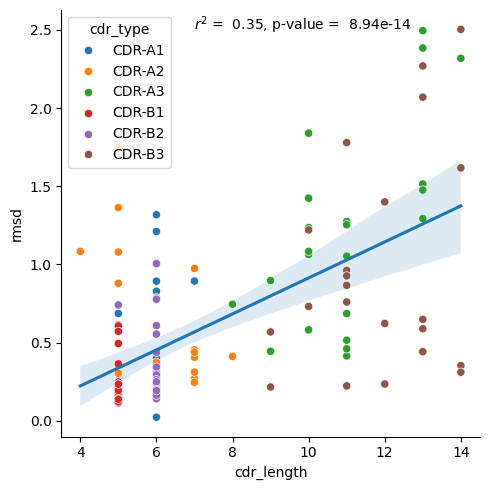

../_images/source_Length_dependency_of_conformational_change_27_0.png

TCR apex calculations

[19]:

results_per_res_tcr = pd.read_csv(os.path.join(DATA_DIR, 'tcr_per_res_apo_holo_loop_align.csv'))
results_per_res_tcr

[19]:

	complex_id	structure_x_name	structure_y_name	chain_type	cdr	residue_name	residue_seq_id	residue_insert_code	rmsd	ca_distance	chi_angle_change	com_distance
0	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	ASP	27	NaN	4.922807	2.215234	-1.001709	3.836500
1	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	ARG	28	NaN	7.683418	2.322292	-1.010462	6.119157
2	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	GLY	29	NaN	0.657793	0.718576	NaN	0.452200
3	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	SER	36	NaN	1.224430	0.404912	-2.505061	0.866544
4	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	GLN	37	NaN	1.133408	0.467132	0.667185	0.798590
...	...	...	...	...	...	...	...	...	...	...	...	...
6228	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	ASP	109	NaN	0.507077	0.180564	0.198956	0.208659
6229	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	ILE	114	NaN	2.164965	0.158682	3.679442	0.829175
6230	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	GLU	115	NaN	1.577728	0.195887	3.091039	0.995351
6231	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	GLN	116	NaN	0.204783	0.197683	-0.014126	0.166472
6232	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	TYR	117	NaN	0.180118	0.164981	-0.024244	0.170852

6233 rows × 12 columns

[20]:

results_per_res_tcr = results_per_res_tcr.merge(
    apo_holo_summary_cdrs_df[['file_name', 'pdb_id', 'structure_type', 'state']],
    how='left',
    left_on='structure_x_name',
    right_on='file_name',
).merge(
    apo_holo_summary_cdrs_df[['file_name', 'pdb_id', 'structure_type', 'state']],
    how='left',
    left_on='structure_y_name',
    right_on='file_name',
).merge(
    apo_holo_summary_cdrs_df[['id',
                              'cdr_sequences_collated',
                              'peptide_sequence',
                              'mhc_slug',
                              'cdr_sequence',
                              'cdr_length',
                              'cdr_type',
                              'chain_type',
                              'cdr']],
    how='left',
    left_on=['complex_id', 'chain_type', 'cdr'],
    right_on=['id', 'chain_type', 'cdr'],
)

[21]:

results_per_res_tcr['comparison'] = results_per_res_tcr['state_x'] + '-' + results_per_res_tcr['state_y']
results_per_res_tcr['comparison'] = results_per_res_tcr['comparison'].map(
    lambda entry: 'apo-holo' if entry == 'holo-apo' else entry
)
results_per_res_tcr = results_per_res_tcr.query("comparison == 'apo-holo'").reset_index(drop=True)

[22]:

results_per_res_tcr['structure_comparison'] = results_per_res_tcr.apply(
    lambda row: '-'.join(sorted([row.structure_x_name, row.structure_y_name])),
    axis='columns',
)
results_per_res_tcr = results_per_res_tcr.drop_duplicates(['structure_comparison', 'chain_type', 'cdr',
                                                           'residue_name', 'residue_seq_id', 'residue_insert_code'])

[23]:

results_per_res_tcr

[23]:

	complex_id	structure_x_name	structure_y_name	chain_type	cdr	residue_name	residue_seq_id	residue_insert_code	rmsd	ca_distance	...	state_y	id	cdr_sequences_collated	peptide_sequence	mhc_slug	cdr_sequence	cdr_length	cdr_type	comparison	structure_comparison
0	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	ASP	27	NaN	4.922807	2.215234	...	apo	3qdg_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNFGGGKLI-MRHNA-SNTAGT-ASSLSFGTEAF	ELAGIGILTV	hla_a_02_01	DRGSQS	6.0	CDR-A1	apo-holo	3qdg_D-E-C-A-B_tcr_pmhc.pdb-3qeu_A-B_tcr.pdb
36	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	ARG	28	NaN	7.683418	2.322292	...	apo	3qdg_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNFGGGKLI-MRHNA-SNTAGT-ASSLSFGTEAF	ELAGIGILTV	hla_a_02_01	DRGSQS	6.0	CDR-A1	apo-holo	3qdg_D-E-C-A-B_tcr_pmhc.pdb-3qeu_A-B_tcr.pdb
72	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	GLY	29	NaN	0.657793	0.718576	...	apo	3qdg_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNFGGGKLI-MRHNA-SNTAGT-ASSLSFGTEAF	ELAGIGILTV	hla_a_02_01	DRGSQS	6.0	CDR-A1	apo-holo	3qdg_D-E-C-A-B_tcr_pmhc.pdb-3qeu_A-B_tcr.pdb
108	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	SER	36	NaN	1.224430	0.404912	...	apo	3qdg_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNFGGGKLI-MRHNA-SNTAGT-ASSLSFGTEAF	ELAGIGILTV	hla_a_02_01	DRGSQS	6.0	CDR-A1	apo-holo	3qdg_D-E-C-A-B_tcr_pmhc.pdb-3qeu_A-B_tcr.pdb
144	3qdg_D-E-C-A-B_tcr_pmhc	3qdg_D-E-C-A-B_tcr_pmhc.pdb	3qeu_A-B_tcr.pdb	alpha_chain	1	GLN	37	NaN	1.133408	0.467132	...	apo	3qdg_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNFGGGKLI-MRHNA-SNTAGT-ASSLSFGTEAF	ELAGIGILTV	hla_a_02_01	DRGSQS	6.0	CDR-A1	apo-holo	3qdg_D-E-C-A-B_tcr_pmhc.pdb-3qeu_A-B_tcr.pdb
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
158220	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	ASP	109	NaN	0.507077	0.180564	...	holo	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	ASSPDIEQY	9.0	CDR-B3	apo-holo	7n1d_A-B_tcr.pdb-7rtr_D-E-C-A-B_tcr_pmhc.pdb
158256	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	ILE	114	NaN	2.164965	0.158682	...	holo	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	ASSPDIEQY	9.0	CDR-B3	apo-holo	7n1d_A-B_tcr.pdb-7rtr_D-E-C-A-B_tcr_pmhc.pdb
158292	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	GLU	115	NaN	1.577728	0.195887	...	holo	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	ASSPDIEQY	9.0	CDR-B3	apo-holo	7n1d_A-B_tcr.pdb-7rtr_D-E-C-A-B_tcr_pmhc.pdb
158328	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	GLN	116	NaN	0.204783	0.197683	...	holo	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	ASSPDIEQY	9.0	CDR-B3	apo-holo	7n1d_A-B_tcr.pdb-7rtr_D-E-C-A-B_tcr_pmhc.pdb
158364	7rtr_D-E-C-A-B_tcr_pmhc	7n1d_A-B_tcr.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	beta_chain	3	TYR	117	NaN	0.180118	0.164981	...	holo	7rtr_D-E-C-A-B_tcr_pmhc	DRGSQS-IYSNGD-AVNRDDKII-SEHNR-FQNEAQ-ASSPDIEQY	YLQPRTFLL	hla_a_02_01	ASSPDIEQY	9.0	CDR-B3	apo-holo	7n1d_A-B_tcr.pdb-7rtr_D-E-C-A-B_tcr_pmhc.pdb

4400 rows × 29 columns

[24]:

def compute_apex_movement(loop: pd.DataFrame) -> float:
    loop_len = len(loop)

    if loop_len % 2 == 0:
        return np.mean([loop.iloc[loop_len // 2]['ca_distance'], loop.iloc[(loop_len // 2) - 1]['ca_distance']])

    return loop.iloc[loop_len // 2]['ca_distance']

[25]:

results_tcr_apex = results_per_res_tcr.groupby(['structure_x_name',
                                                'structure_y_name',
                                                'cdr_type',
                                                'cdr',
                                                'chain_type',
                                                'cdr_length']).apply(compute_apex_movement)
results_tcr_apex.name = 'apex_ca_distance'
results_tcr_apex = results_tcr_apex.reset_index()

[26]:

results_tcr_apex

[26]:

	structure_x_name	structure_y_name	cdr_type	cdr	chain_type	cdr_length	apex_ca_distance
0	1ao7_D-E-C-A-B_tcr_pmhc.pdb	3qh3_A-B_tcr.pdb	CDR-A1	1	alpha_chain	6.0	0.153049
1	1ao7_D-E-C-A-B_tcr_pmhc.pdb	3qh3_A-B_tcr.pdb	CDR-A2	2	alpha_chain	6.0	0.447122
2	1ao7_D-E-C-A-B_tcr_pmhc.pdb	3qh3_A-B_tcr.pdb	CDR-A3	3	alpha_chain	11.0	2.461146
3	1ao7_D-E-C-A-B_tcr_pmhc.pdb	3qh3_A-B_tcr.pdb	CDR-B1	1	beta_chain	5.0	0.319232
4	1ao7_D-E-C-A-B_tcr_pmhc.pdb	3qh3_A-B_tcr.pdb	CDR-B2	2	beta_chain	6.0	0.167444
...	...	...	...	...	...	...	...
569	7r7z_A-B_tcr.pdb	7r80_A-B-E-C-D_tcr_pmhc.pdb	CDR-A2	2	alpha_chain	7.0	0.173771
570	7r7z_A-B_tcr.pdb	7r80_A-B-E-C-D_tcr_pmhc.pdb	CDR-A3	3	alpha_chain	11.0	0.508615
571	7r7z_A-B_tcr.pdb	7r80_A-B-E-C-D_tcr_pmhc.pdb	CDR-B1	1	beta_chain	5.0	0.108211
572	7r7z_A-B_tcr.pdb	7r80_A-B-E-C-D_tcr_pmhc.pdb	CDR-B2	2	beta_chain	6.0	0.219891
573	7r7z_A-B_tcr.pdb	7r80_A-B-E-C-D_tcr_pmhc.pdb	CDR-B3	3	beta_chain	13.0	0.789117

574 rows × 7 columns

[27]:

r, p_val = scipy.stats.pearsonr(results_tcr_apex['cdr_length'], results_tcr_apex['apex_ca_distance'])

sns.lmplot(results_tcr_apex.sort_values('cdr_type'), x='cdr_length', y='apex_ca_distance', scatter=False)
sns.scatterplot(results_tcr_apex.sort_values('cdr_type'), x='cdr_length', y='apex_ca_distance', hue='cdr_type')

plt.text(6.75, 4, f'$r^2$ = {r**2: .2f}, p-value = {p_val: .2e}')

plt.show()

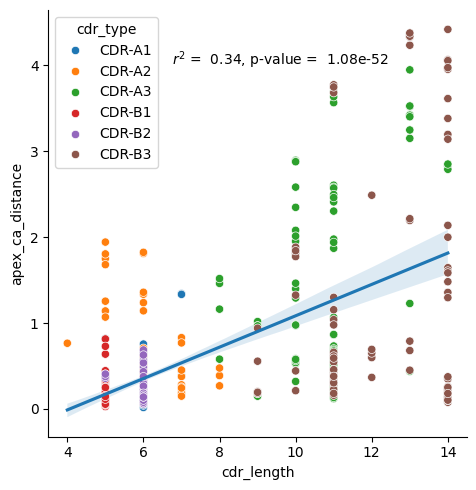

../_images/source_Length_dependency_of_conformational_change_37_0.png

Peptide Analysis

Load data

[28]:

results_peptide = pd.read_csv(os.path.join(DATA_DIR, 'pmhc_tcr_contact_apo_holo.csv'))

results_peptide = results_peptide.query("chain_type == 'antigen_chain'")
results_peptide = results_peptide.drop(columns=['chain_type', 'tcr_contact'])

results_peptide

[28]:

	complex_id	structure_x_name	structure_y_name	rmsd
2	5c0a_D-E-C-A-B_tcr_pmhc	5c0a_D-E-C-A-B_tcr_pmhc.pdb	5n1y_C-A-B_pmhc.pdb	0.448858
5	5wlg_D-E-C-A-B_tcr_pmhc	5wlg_D-E-C-A-B_tcr_pmhc.pdb	5wli_C-A-B_pmhc.pdb	0.498148
8	5wlg_D-E-C-A-B_tcr_pmhc	5wlg_D-E-C-A-B_tcr_pmhc.pdb	5wli_F-D-E_pmhc.pdb	0.519507
11	5wlg_D-E-C-A-B_tcr_pmhc	5wlg_D-E-C-A-B_tcr_pmhc.pdb	5wli_I-G-H_pmhc.pdb	0.459025
14	5wlg_D-E-C-A-B_tcr_pmhc	5wlg_D-E-C-A-B_tcr_pmhc.pdb	5wli_L-J-K_pmhc.pdb	0.494705
...	...	...	...	...
3301	7rtr_D-E-C-A-B_tcr_pmhc	7n6d_O-M-N_pmhc.pdb	7rtd_C-A-B_pmhc.pdb	0.486296
3304	7rtr_D-E-C-A-B_tcr_pmhc	7n6d_O-M-N_pmhc.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	0.448905
3307	7rtr_D-E-C-A-B_tcr_pmhc	7p3d_C-A-B_pmhc.pdb	7rtd_C-A-B_pmhc.pdb	0.773692
3310	7rtr_D-E-C-A-B_tcr_pmhc	7p3d_C-A-B_pmhc.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	0.765295
3313	7rtr_D-E-C-A-B_tcr_pmhc	7rtd_C-A-B_pmhc.pdb	7rtr_D-E-C-A-B_tcr_pmhc.pdb	0.455078

1096 rows × 4 columns

Merge with metadata

[29]:

apo_holo_summary_df['peptide_length'] = apo_holo_summary_df['peptide_sequence'].str.len()

[30]:

results_peptide = results_peptide.merge(
    apo_holo_summary_df[['file_name', 'pdb_id', 'state']],
    how='left',
    left_on='structure_x_name',
    right_on='file_name',
).merge(
    apo_holo_summary_df[['file_name', 'pdb_id', 'state']],
    how='left',
    left_on='structure_y_name',
    right_on='file_name',
).merge(
    apo_holo_summary_df[['id', 'peptide_sequence', 'peptide_length', 'mhc_slug']],
    how='left',
    left_on='complex_id',
    right_on='id',
)

Normalise data

[31]:

results_peptide['comparison'] = results_peptide['state_x'] + '-' + results_peptide['state_y']
results_peptide['comparison'] = results_peptide['comparison'].map(
    lambda entry: 'apo-holo' if entry == 'holo-apo' else entry,
)
results_peptide = results_peptide.query("comparison == 'apo-holo'").reset_index(drop=True)

[32]:

results_peptide['structure_comparison'] = results_peptide.apply(
    lambda row: '-'.join(sorted([row.structure_x_name, row.structure_y_name])),
    axis='columns',
)
results_peptide = results_peptide.drop_duplicates('structure_comparison')

[33]:

results_peptide = results_peptide.groupby(['peptide_sequence',
                                           'comparison',
                                           'peptide_length',
                                           'mhc_slug'])['rmsd'].mean().reset_index()

[34]:

results_peptide

[34]:

	peptide_sequence	comparison	peptide_length	mhc_slug	rmsd
0	AAGIGILTV	apo-holo	9.0	hla_a_02_01	1.025622
1	ALGIGILTV	apo-holo	9.0	hla_a_02_01	1.274516
2	ALWGFFPVL	apo-holo	9.0	hla_a_02_01	0.351748
3	ALWGPDPAAA	apo-holo	10.0	hla_a_02_01	0.703094
4	APRGPHGGAASGL	apo-holo	13.0	hla_b_07_02	3.523593
...	...	...	...	...	...
75	VVVGAGGVGK	apo-holo	10.0	hla_a_11_01	1.483028
76	YGFRNVVHI	apo-holo	9.0	h2_db	0.275006
77	YLGGPDFPTI	apo-holo	10.0	hla_a_02_01	0.868938
78	YLQPRTFLL	apo-holo	9.0	hla_a_02_01	0.584577
79	YQFGPDFPIA	apo-holo	10.0	hla_a_02_01	0.408370

80 rows × 5 columns

Visualise results

[35]:

r, p_val = scipy.stats.pearsonr(results_peptide['peptide_length'], results_peptide['rmsd'])

sns.lmplot(results_peptide.sort_values('mhc_slug'), x='peptide_length', y='rmsd', scatter=False)
ax = sns.scatterplot(results_peptide.sort_values('mhc_slug'), x='peptide_length', y='rmsd', hue='mhc_slug')
sns.move_legend(ax, "upper left", bbox_to_anchor=(1, 1))

plt.text(8.5, 4, f'$r^2$ = {r**2: .2f}, p-value = {p_val: .2e}')

plt.show()

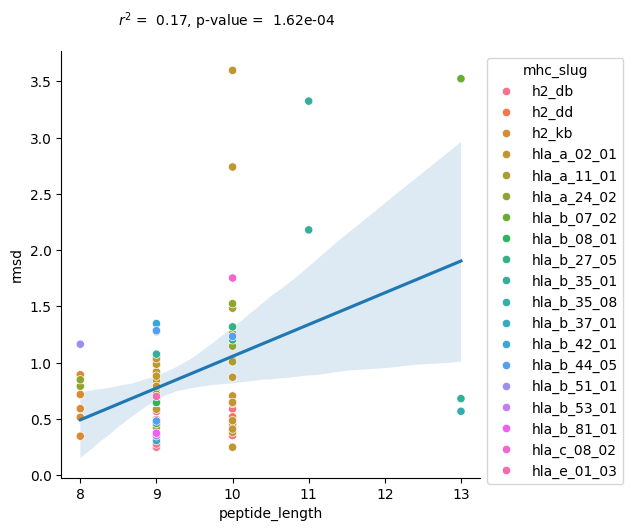

../_images/source_Length_dependency_of_conformational_change_50_0.png

Conclusion

Both TCR CDR loops and peptides show a correlation between length and amount of conformational change. For the TCRs, there is a correlation in both paradigms, framework alignment and loop alignment, but the correlation is much stronger looking at the loop alignments. The increased correlation for loop alignments make sense since the conformational changes from the framework regions can be driven by other parts of the protein, but when the loops are aligned together, the only differences can be driven by changes in the loops themselves, implying the loop length has more of an effect.
